LLM-VarioRay

Compact design

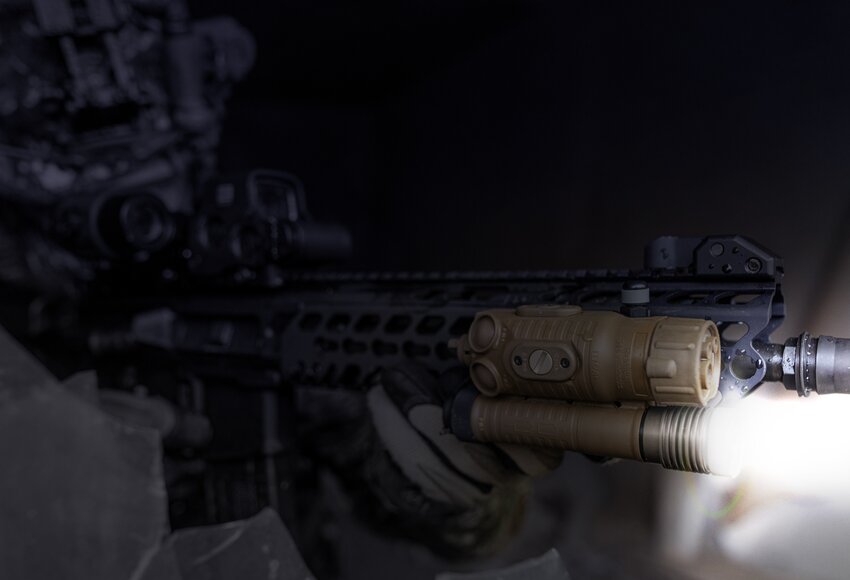

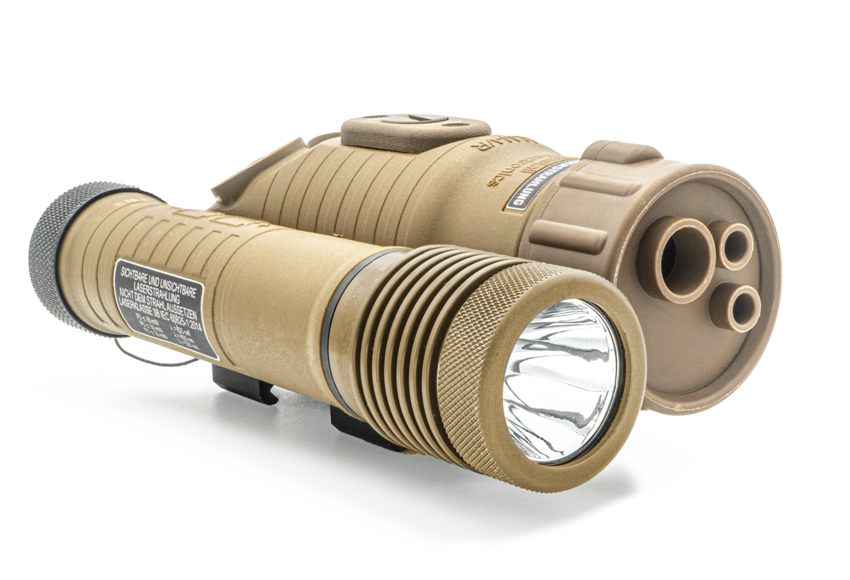

The Rheinmetall LLM-VarioRay laser light module is the compact and enhanced successor to the combat-proven LLM-01. To enhance night combat capability, the laser light module combines a powerful IR laser, IR illuminator, a perfectly matched visible aiming laser (red or green) and an integrated LED white light weapon lamp in its compact housing. The rugged and MIL-STD-810 tested LLM-VarioRay uses the Picatinny Rail (MIL-STD-1913/STANAG4694) to interface with modern assault rifles or submachine guns. It can be mounted on either side along the barrel of the weapon - various mounting systems available.

Technical data

Case	Characteristics
Length	140 mm
Width	70 mm
Height	50 mm
Mounting height	45 mm
Mounting	Picatinny Rail (MIL-STD-1913/STANAG4694)
Weight incl. battery & mount	275 g
Waterproof (IP68), salt water resistance	30 m for 2 h
Test standard	MIL-STD-810

Variable laser

Improved night combat capability and increased reaction speed - LLM-VarioRay laser light module includes a powerful visible aiming laser, IR laser, IR illuminator and LED white light weapon lamp. Optional LED-IR dual mode weapon lamp.

For easy alignment of the lasers to the line of sight, the LLM-VarioRay laser module includes the specially designed, factory-aligned Rheinmetall laser block.

For easy alignment of the lasers to the line of sight, the LLM-VarioRay laser module includes the specially designed, factory-aligned Rheinmetall laser block.

Visible aiming laser (red or green)
When mounting the LLM-VarioRay on the Picatinny Rail, the visible aiming laser enables an exact marking of the aimed target and increases the (first) hit probability. The range here depends on various environmental influences and is normally several hundred meters.

IR aiming laser (not visible)
The IR laser of the LLM-VarioRay, which is not visible to the naked eye, is usually used in combination with night vision goggles (NVG). In this way, it enables a significant increase in night combat capability, surprising effect, and hit probability. The range here depends on various environmental factors and can reach up to 2000 m.

IR illuminator (not visible)
In addition, the LLM-VarioRay laser light module has an electronically focusable infrared illuminator, which is not visible to the naked eye. In combination with night vision goggles (NVG), this provides optimum illumination at night, in dark rooms and in poorly lit target areas. The LLM-VarioRay includes the option of using a diffuser on the IR illuminator to support Close Quaters Battle (CQB) or indoor engagements.

Laser characteristics

Visible aiming laser
Wavelength	red: 640 nm / green: 520 nm
typ. output power	red: 60 mw / green: 20 mW

Infrared aiming laser
Wavelength	850 nm
typ. output power	30 mW

Infrared illuminator with el. focus
Wavelength	850 nm
typ. output power	60 mW

Near-field illuminator
Wavelength	850 nm
typ. output power	30 mW

LED white light weapon lamp
max. luminous flux	up to 650 lm

LED-IR dual mode weapon lamp
max. luminous flux	up to 500 lm
IR output power	up to 300 mW
IR Wavelength	up to 940 nm

Download datasheet

Outstanding laser safety

For eye protection, the LLM-VarioRay uses Rheinmetall's patented concept of color-coded trigger cables / dongles for laser and laser light modules.
"Train as you fight" - the free choice of power-defining trigger cables / dongles enables realistic training with mission-relevant equipment. The laser power is - depending on your choice - either reduced (training) or released to the maximum (combat).

Custom colors available, e.g. blue for training, black and grey for combat.

41092

Cable / Dongle | Training mode | Laser class 2

5276

Cable / Dongle | Training mode | Laser class 2

56633

Cable / Dongle | Combat mode | Laser class 3R

1686

Cable / Dongle | Combat mode | Laser class 3B

Note
All laser classes are defined according to IEC 60825-1:2014. Laser beams can cause eye damage. The user is responsible for compliance with the safety regulations.
